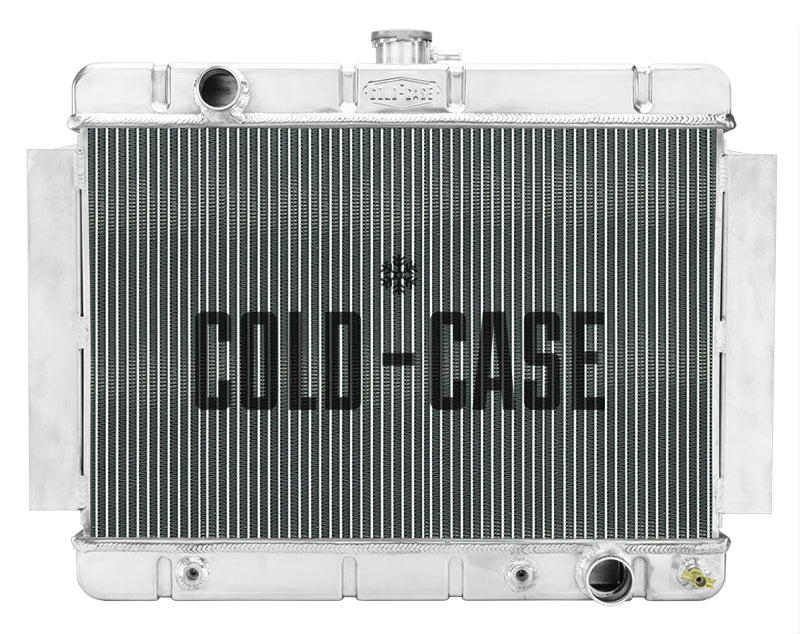

66-67 Chevelle / El Camino w/o AC Aluminum Performance Radiator Cold Case Radiator

1966-1967 Chevrolet Chevelle/El Camino w/o AC Aluminum Performance Radiator. This is the configuration with a center filler and upper inlet offset on driver side. 23 inch wide core without AC applications but will fit all V8.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.25 Inch Tubes
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/standard trans
• Direct fitment for 66-67 Chevelle/El Camino

Radiator Specs

• Core Height 15.5 Inch
• Core Width 24 Inch
• Overall Height 21.25 Inch to cap
• Overall Width 28.5 brackets Inch
• Overall Thickness 3 Inch
• Tubes (2) 1.25 Inch Tubes
• Upper Hose 1.5 Inch
• Lower Hose 1.75 Inch
